N380

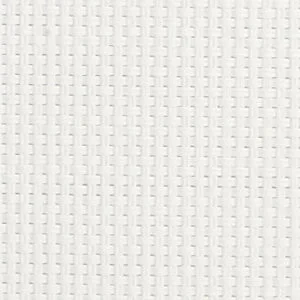

002002 White
S380 reference colour: 0202
Max roll’s width: 3200 mm
Front

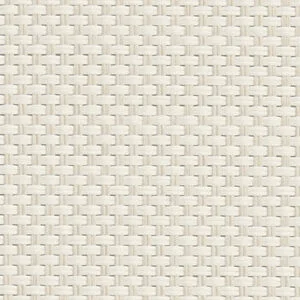

Back002008 White-Linen
S380 reference colour: 0220
Max roll’s width: 3200 mm
Front
Back002007 White-Pearl Grey
S380 reference colour: 0207
Max roll’s width: 3200 mm
Front

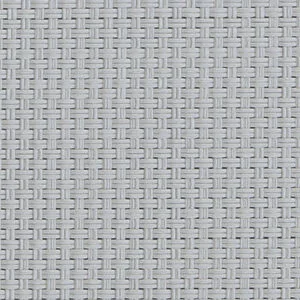

Back007007 Pearl Grey
S380 reference colour: 0707
Max roll’s width: 3200 mm
Front

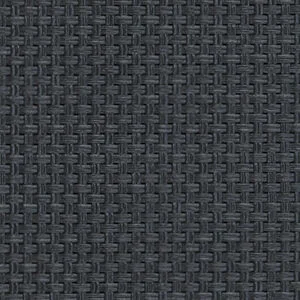

Back010010 Charcoal
S380 reference colour: 3030
Max roll’s width: 3200 mm
Front
Back
| Feature | Value |
|---|---|
| Composition | 36% fibreglass - 64% PVC |
| Fire classification* | EU: C-s3-d0, IT: Classe 1, GB: BS 5867 - C, F: M2, ES: Clase 1, USA: NFPA 701 - FR |
| Openess factor | 1% (N380 1%) - 5% (N380 5%) |
| Weight | 420 g/m² (N380 1%) - 380 g/m² (N380 5%) |
| Thickness | 0,50 mm (N380 1%) - 0,45 mm (N380 5%) |
| Roll's width | 2500 - 3200 mm |
| Breaking strength | Warp: 244 DaN/5cm - Weft: 190 DaN/5cm (N380 1%) |
| Breaking strength | Warp: 160 DaN/5cm - Weft: 160 DaN/5cm (N380 5%) |
| Tear strength | Warp: > 5.1 DaN - Weft: > 3.3 DaN (N380 1%) |
| Tear strength | Warp: > 4.9 DaN - Weft: > 4.7 DaN (N380 5%) |
| ZIP application | Applicable. |
| Seam processing | Fabric seamed horizontally according to the roll's width. |
The technical fabrics shown in this site are a selection of the available tissues for the realisation of the roller blinds. We recommend to contact us or to consult your retailer of trust for further explanations. Because of technical limits for the display and the print the colours reproduced in this document can differ from the real colours. We recommend to control the colour chart with the tissue samples before making any order. Values and indications given may change and are not binding.
* The fireproofing certifications are those reported by our fabric suppliers (as for all the other data regarding properties of fabrics): if necessary, it is always advisable, during the quotation phase, to make sure that the required certificate is present. These certificates can be subject to expiration and/or renewals.
